Description

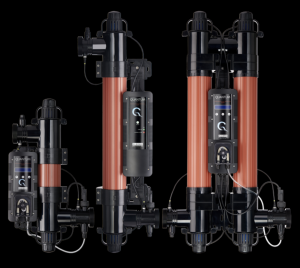

QUANTUM
Features:
Power supply : Single phase 100V ~ 240V
Min. flow rate : 1.5m³/h
Max. debit:
- Mini: 10,000 liters per hour; 10m³/h
- Single: 14,000 liters per hour; 14m³/h
- Double: 28,000 liters per hour; 28m³/h
Max. pool size:
- Mini: 35,000 liters; 35m³
- Single: 65,000 liters; 65m³
- Double: 130,000 liters; 130m³
Max. energy consumption:
Mini: 40W
Single: 64W
Dual: 128W
Lamp: Low Pressure/High Output
Lamp life : 9,000 – 14,000 hours
Dosing rate : Exceeds the equivalent of 30mj/cm² at the maximum rate.
Ingress protection rating : IP64
Frequency: 50/60Hz
Operating pressure: 3 Bar maximum
Water connections: 2”/63mm stepped ABS fittings + 1½”/50mm reducers
Saltwater: 100% safe for seawater
Mounting: Vertical or horizontal wall mounting
Oxidation processes: Quantum photocatalytic oxidation (PCO) and hydroxyl radicals (HO)
